Which class amplifier has maximum efficiency?
Written by Michael Henderson — 0 Views
Class D amplifier is the highest power efficient amplifier class in the A, B, AB, and C and D segment. It has smaller heat dissipation, so small heatsink is needed. The circuit requires various switching components like MOSFETs which has low on resistance.
Similarly, you may ask, which class of amplifier has the lowest efficiency?

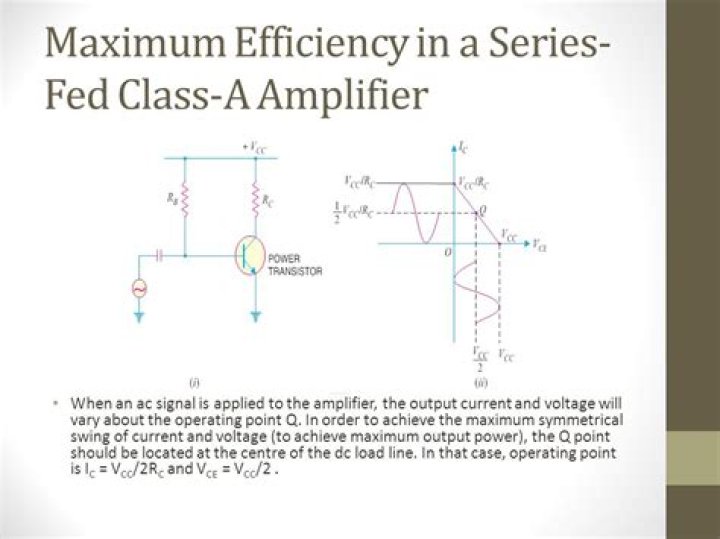

Class A amplifier has the least efficiency of 25%. In Class A amplifier, the Q point is at the centre . Therefore, there is always DC power dissipation, even if there is no input signal.
One may also ask, which amplifier has highest efficiency and distortion? Class C amplifiers A Class C amplifier is biassed so that it conducts over much less than half a cycle. This gives rise to very high levels of distortion, but also it enables very high efficiency levels to be achieved.
Keeping this in view, why efficiency of Class C power amplifier is highest?
When the collector current flows for less than half cycle of the input signal, the power amplifier is known as class C power amplifier. The efficiency of class C amplifier is high while linearity is poor. So, the output current will be delivered for less time compared to the application of input signal.
Which power amplifier has maximum distortion?
Class operation gives the maximum distortion.
Related Question Answers
Which class amplifier is best?
One Amplifier to Rule Them All?| Amplifier Class | Typical Efficiency | Pros |
|---|---|---|
| B | ~70% | Relatively high efficiency. |
| A/B | ~50-70% | More efficient than Class A. Relatively Inexpensive. Crossover distortion can be rendered moot. |
| G & H | ~50-70% | Improved efficiency over Class A/B. |
| D | >90% | Best possible efficiency Light weight. |
Which amplifier is best?
Top 10 Best Stereo Amplifiers On The Market 2019 Reviews- Marantz HD-AMP1 Digital Integrated Amplifier.
- Cambridge Audio CXA60 Integrated Amplifier.
- Pro-Ject MaiA My Audio Integrated Amplifier.
- Onkyo A-9150 Refined Power Stereo Integrated Amplifier.
- Teac AX-501-B Integrated Amplifier.
Is a Class D amplifier better?
However, the drawback of increasing the switching frequency is that the amplifier will be less efficient. Even so, the efficiency of a practical Class-D amplifier can be better than 90 percent, which is significantly better than a Class-AB design (78.5 percent at best and typically closer to 50 percent).What class amp is best for subs?
What are Class D amplifiers and why are they used for subwoofers?| Pros | |
|---|---|
| Class B: | More Efficient Than Class A Smaller Size Creates Less Heat |
| Class A/B: | More Efficient Than Class A Less Distortion Than Class B |
| Class D: | Extremely Efficient Compared to Class A Much Smaller Size (Depending on power requirements and design) |
What is class A and class B amplifier?
Power amplifier classes are, in electronics, letter symbols applied to different power amplifier types. A class A amplifier is conducting through all the period of the signal; Class B only for one-half the input period, class C for much less than half the input period.Which is better class D or class AB amplifier?
A "Class D" design offer far greater efficiency and performance, combining high power efficiency, power output and audio performance. Amplifiers on this class are suitable for a wide range of high-end audio applications. "Class D" efficiency is typically in excess of 95% compared with 60% for a "Class AB" amplifiers.What are Class B amplifiers used for?
The class B amplifiers are the positive and negative halves of the signals, that are allocated to the different parts of the circuits and the output device switched ON and OFF continuously. The basic class B amplifiers are used in two complementary transistors which are FET and bipolar.What is the efficiency of Class C amplifier?
The maximum theoretical efficiency of a Class-C amplifier is around 90%. This type of amplifier is not used in audio amplifiers because of the vast amounts of distortion.What are Class C amplifiers used for?
➢ The Class C amplifier is used in the applications like RF oscillators, RF amplifier, FM transmitters, Booster amplifiers, High frequency repeaters and Tuned amplifiers. ➢ The main advantage of the Class C amplifier is, it has a Lowest physical size for a given power output.Why is the efficiency of Class C power amplifier low?
When the collector current flows for less than half cycle of the input signal, the power amplifier is known as class C power amplifier. The efficiency of class C amplifier is high while linearity is poor. So, the output current will be delivered for less time compared to the application of input signal.What are Class C amplifiers?
Class C power amplifier is a type of amplifier where the active element (transistor) conduct for less than one half cycle of the input signal. Less than one half cycle means the conduction angle is less than 180° and its typical value is 80° to 120°. Theoretical maximum efficiency of a Class C amplifier is around 90%.What are class A amplifiers used for?
Class A Power Amplifiers. The purpose of class A bias is to make the amplifier relatively free from distortion by keeping the signal waveform out of the region between 0V and about 0.6V where the transistor's input characteristic is non linear. Class A design produces good linear amplifiers, but are wasteful of power.What is the efficiency of Class B amplifier?
That means the conduction angle is 180° for a Class B amplifier. Since the active device is switched off for half the input cycle, the active device dissipates less power and hence the efficiency is improved. Theoretical maximum efficiency of Class B power amplifier is 78.5%.What is the maximum efficiency of Class A amplifier?
The theoretical maximum efficiency of a Class A power amplifier is 50%. In practice, with the capacitive coupling and inductive loads (loudspeakers), the efficiency can decrease as low as 25%. This means 75% of power drawn by the amplifier from the supply line is wasted.What does class D amplifier mean?
A class-D amplifier or switching amplifier is an electronic amplifier in which the amplifying devices (transistors, usually MOSFETs) operate as electronic switches, and not as linear gain devices as in other amplifiers.What is the difference between Class A and Class D amplifier?
Class A: Single-ended; the amplifier device is biased about the center of the input signal swing. In a class D amplifier, power field-effect transistors (FETs) are driven to produce an output square-wave that switches between a high and low level at a frequency outside the range of human hearing.Why the efficiency of Class A amplifier is poor?
Since the transistors in Class A amplifier, are forward biased all the time, few current will flow through them even though there is no input signal and this is the main reason for its poor efficiency. Generally, the current flows through the collector resistive load, this will cause the wastage of the DC power in it.What is the best home audio amplifier?
?The best stereo amplifiers ?on the market right now:| Stereo Amplifier | Rank |
|---|---|
| 1. Marantz HD-AMP1 Digital Integrated Amplifier | 5 |
| 2. Cambridge Audio CXA60 Integrated Amplifier | 4.9 |
| 3. Pro-Ject MaiA My Audio Integrated Amplifier | 4.8 |
| 4. Onkyo A-9150 Refined Power Stereo Integrated Amplifier | 4.8 |
