4 inches

Similarly, it is asked, what is the minimum thickness of slab?

1.3 Minimum thickness of Slab on the ground UBC recommends minimum thickness of Concrete floor slabs supported directly on the ground to be 89mm, whereas BCGBC4010A – Apply structural principles to residential low-rise constructions determined minimum thickness to be 100mm.

One may also ask, how do you calculate the thickness of a concrete slab? How to calculate concrete:

1. Determine how thick you want the concrete.
2. Measure the length and width that you'd like to cover.
3. Multiply the length by the width to determine square footage.
4. Convert the thickness from inches to feet.
5. Multiply the thickness in feet by the square footage to determine cubic feet.

Simply so, what is the minimum depth of two way slab?

125 mm.

What is the minimum thickness of RCC slab?

Minimum thickness of slab is restricted to 4 times the nominal size of aggregate. For example , in 20mm nominal size aggregate is used in concrete , the minimum thickness is limited to 80 mm. Cl 5.3. 3 of IS 456:2000.

Related Question Answers

How do you measure the thickness of a slab?

If there is, you can check the opening of the slab there. If there's no other way to determine the thickness, and drilling a small hole is acceptable, then you can measure the thickness with a piece of wire.

How thick is a commercial concrete slab?

4 to 6 inches

How do you calculate effective depth of a slab?

b) Depth of slab: Effective depth d= Span /((L/d)_Basic x modification factor) For obtaining modification factor, the percentage of steel for slab can be assumed from 0.2 to 0.5%. The effective depth d of two way slabs can also be assumed using cl.

What is the minimum thickness of a concrete foundation?

6 inches

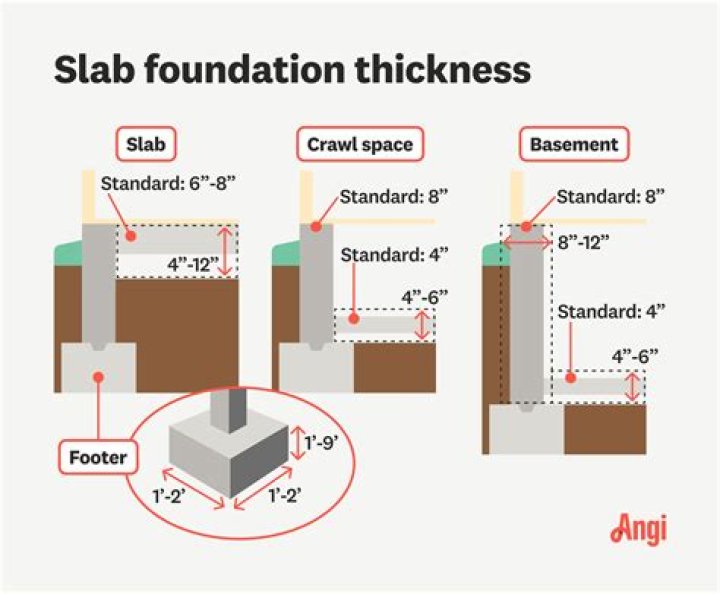

How thick should slab on grade be?

An article once reported that the thickness of one specified 6 inch slab varied from 2 ¾ inches to 8 inches, but the “normal” range should have been between 4 ½ inches to 7 ½ inches of thickness with an “average” concrete thickness of 5 ¼ to 5 ½ inches.

What is the difference between one way and two way slab?

BASIC DIFFERENCE BETWEEN ONE WAY SLAB AND TWO WAY SLAB: In one way slab the slabs are supported by the beams on the two opposite sides. In two way slab the slabs are supported on all the four sides . In one way slab the ratio of Longer span to shorter span is equal or greater than 2.

What is 2 way reinforced concrete slab?

TWO WAY SLAB: When a reinforced concrete slab is supported by beams on all the four sides and the loads are carried to the supports along both directions, it is known as two way slab. In two way slab the ratio of longer span (l) to shorter span (b) is less than 2.

How many bags of cement do I need for a 10x10 slab?

10ft x 10ft x 0.33 ft = 3 cubic feet divide by 0.6 bags per ft^3 = 55 bags. To be on the safe side use 56 bags. It is always better to have a little more than not enough, when pouring flatwork.

How much does a 10x10 concrete pad cost?

Average Cost To Pour Concrete To pour a typical 10x10 concrete slab will cost $670 to $930, a 12x12 slab for a patio will cost $796 to $1,476, a 20x24 driveway slab runs between $1,440 and $3,360, and a 24x24 slab for a garage will cost $3,058 to $5,944.

How much does 2 yards of concrete cost?

Concrete Costs Per Cubic Yard According to the NRMCA - Ready Mixed Concrete Industry Data Survey, the average cost of concrete in 2016 was $108.22 per cubic yard, or $216.44 for the 2 cubic yards needed for the 10x10 patio project listed above.

How thick should a concrete slab be for a garage?

four-inches
