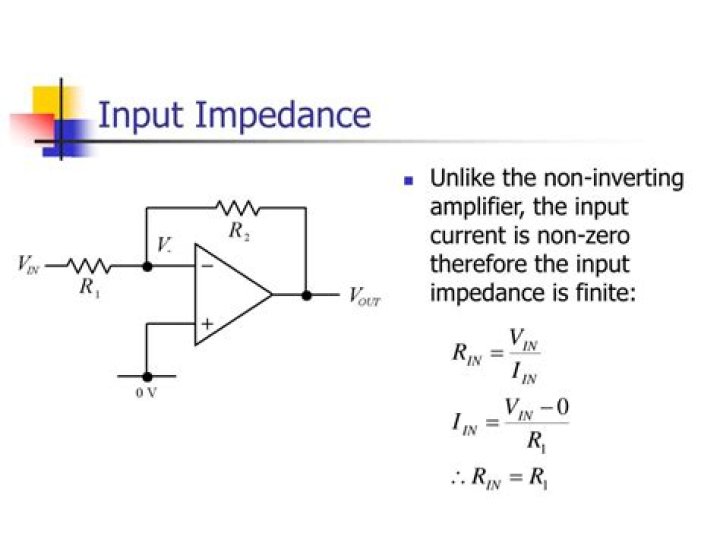

it is found that the input impedance for this op amp circuit is at least the that between non-inverting and inverting inputs, which is typically 1 MΩ to 10 TΩ, plus the impedance of the path from the inverting input to ground i.e. R1 in parallel with the resistor R2.

Keeping this in view, what is the input impedance of an op amp?

5 Input Impedance. The input impedance of an op amp is the impedance that is seen by the driving device. The lower the input impedance of the op amp, the greater is the amount of current that must be supplied by the signal source.

Similarly, what is inverting input op amp? An Operational Amplifier is basically a three-terminal device which consists of two high impedance inputs. One of the inputs is called the Inverting Input, marked with a negative or “minus” sign, ( – ). The other input is called the Non-inverting Input, marked with a positive or “plus” sign ( + ).

Also know, what is the input impedance of a non inverting op amp amplifier?

Non-inverting amplifier input impedance The impedance of the op amp non inverting circuit is particularly high. The input impedance of this operational amplifier circuit may typically be well in excess of 10⁷Ω.

What is input and output impedance?

Input impedance is the impedance which a source or anything will see while looking inside the circuit. Output impedance: The output impedance is determined at the output terminals looking back into the system with the applied signal set to zero. Input impedance: It is the ratio of input voltage and input current.

Related Question Answers

What is a high impedance input?

In electronics, high impedance means that a point in a circuit (a node) allows a relatively small amount of current through, per unit of applied voltage at that point. In audio systems, a high-impedance input may be required for use with devices such as crystal microphones or other devices with high internal impedance.

What does input impedance mean?

Input impedance. From Wikipedia, the free encyclopedia. The input impedance of an electrical network is the measure of the opposition to current (impedance), both static (resistance) and dynamic (reactance), into the load network that is external to the electrical source.

How do you find the input impedance?

For the input, the voltage is measured across the input terminals and the current measured by inserting the meter in series with the signal generator. Use a fixed frequency say 1kHz and set the generator level to around 20 mV RMS. For example, if you read 20mV RMS and 10uA for current, then the impedance is 2k.

What is the use of high input impedance?

The answer is the high input impedance is good for the amplifier circuit to have a good amplification of the input signal other wise we get low voltage in, so low amplification. I hope this can help, thank you. To get all the voltage from a source to a target without loss.

Why the input impedance of op amp is so high?

Typically, a very high input impedance of op-amps is desirable because that means very little current is required from the source to make a voltage. That is, an op-amp doesn't look much different from an open circuit, where it takes no current to make a voltage, because the impedance of an open circuit is infinite.

What is called impedance?

Impedance, denoted Z, is an expression of the opposition that an electronic component, circuit, or system offers to alternating and/or direct electric current. Impedance is a vector (two-dimensional)quantity consisting of two independent scalar (one-dimensional) phenomena: resistance and reactance.

How do you increase input impedance?

If the input signal drop is not a big issue, one can use a series resistance at the input of the amplifier to increase the input impedance. Other methods : Add an Emitter Follower section as the input. If you use a Darling pair as its active element, it is still better.

Why should input impedance be high?

Another reason op amps need high input impedance is because the loading effect. Thus, as it's high impedance, it acts as a small load. The high impedance ensures that it draws very little current. It is the amplifier's task to convert a low energy, voltage-driven signal into a higher-voltage output signal.

What is the formula for non inverting amplifier?

Gain = 1 + (R2/R1) Note that while the inverting amp can have a gain less than one for handy signal scaling, the non-inverting amp must have a gain of at least one. Naturally, we must still power the op-amp with V+ and V- giving enough range to comfortably accomodate our expected signal output.

What is the difference between inverting and non inverting input?

The amplifier which has 180 degrees out of phase output with respect to input is known as an inverted amplifier, whereas the amplifier which has the o/p in phase with respect to i/p is known as a non-inverting amplifier.

Which is better inverting or noninverting amplifier?

Inverting op-amps provide more stability to the system than non-inverting op-amp.In case of inverting op-amp negative feedback is used that is always desirable for a stable system.

What is the use of non inverting amplifier?

The non-inverting amplifier configuration is one of the most popular and widely used forms of operational amplifier circuit and it is used in many electronic devices. The op amp non-inverting amplifier circuit provides a high input impedance along with all the advantages gained from using an operational amplifier.

What is an inverting input?

An inverting input is one that is the opposite polarity as the output. The non-inverting input is the same polarity as the output.

What is the function of non inverting amplifier?

A non-inverting amplifier is an op-amp circuit configuration which produces an amplified output signal. This output signal of non-inverting op amp is in-phase with the input signal applied. In other words a non-inverting amplifier behaves like a voltage follower circuit.

What is meant by non inverting amplifier?

Definition. Non Inverting amplifier is one in which the output is in phase with respect to input(i.e. if you apply a positive voltage, output will be positive ). Output is an Non inverted(in terms of phase) amplified version of input.

Where are non inverting amplifiers used?

The voltage follower or unity gain buffer is a special and very useful type of Non-inverting amplifier circuit that is commonly used in electronics to isolated circuits from each other especially in High-order state variable or Sallen-Key type active filters to separate one filter stage from the other.

Why is it called non inverting amplifier?

The output is a non-Inverted (in terms of phase) amplified version of input. If the output of the circuit remains within the supply rails of the amplifier, then the output voltage divided by the gain means that there is virtually no difference between the two inputs.

Why is inverting amplifier used?

Has less input impedance due to feedback, whereas Non Inverting has high impedance. Gain is less than 1, so can be used as mixer too. Can provide signal phase shifts, which are required in communication circuits for signal analysis. Linearises the characteristics of Op-Amp.

What is the function of inverting amplifier?

Inverting amplifier: Inverting amplifier is one in which the output is exactly 180 degree out of phase with respect to input(i.e. if you apply a positive voltage, output will be negative). Output is an inverted(in terms of phase) amplified version of input.

What are the applications of inverting amplifier?

Inverting amplifiers have higher gain . In inverting amplifier input and output are out of phase by 180 degrees , inverting amplifier are mostly widely used in oscillator circuits to satisfy barkaushen criteria so that sustained oscillations are produced .

How do you make an inverting op amp circuit?

1. Step 1: Attach power supply positive, negative, and ground.
2. Step 2: Connect terminals to breadboard nodes.
3. Step 3: Install Op Amp.
4. Step 4: Attach Power to Op Amp.
5. Step 5: Wire Input Signal from Function Generator.
6. Step 6: Inserting Resistors.
7. Step 7: Wire Oscilloscope to Circuit.

Why Positive feedback is not used in op amp?

Then we can see that positive feedback does not allow the circuit to function as an amplifier as the output voltage quickly saturates to one supply rail or the other, because with positive feedback loops “more leads to more” and “less leads to less”.

How do you wire an op amp?

1. Step 1: Attach power supply positive, negative, and ground.
2. Step 2: Connect terminals to breadboard nodes.
3. Step 3: Install Op Amp.
4. Step 4: Attach Power to Op Amp.
5. Step 5: Wire Input Signal from Function Generator.
6. Step 6: Inserting Resistors.
7. Step 7: Wire Oscilloscope to Circuit.

How does an op amp work?

Well, the idea is you put two electrical signals into the inputs then the output changes accordingly. It takes the difference between the inputs and amplifies it, hence operational amplifier, or op amp. The input to the plus, or NON-INVERTING, input is 0. Now the op-amp is in an unbalanced state.

What is meant by op amp?

An operational amplifier (or an op-amp) is an integrated circuit (IC) that operates as a voltage amplifier. An op-amp has a differential input. That is, it has two inputs of opposite polarity. An op-amp has a single output and a very high gain, which means that the output signal is much higher than input signal.

What is meant by output impedance?

The output impedance is the ratio of change in output voltage to change in load current. The power supply output impedance depends on whether it is used as a voltage source which ideally has zero impedance, or as a current source which has infinite or very high impedance.

What is the difference between impedance and resistance?

Resistance is simply defined as the opposition to the flow of electric current in the circuit. Impedance is opposition to the flow of AC current because of any three components that is resistive, inductive or capacitive. It is a combination of both resistance and reactance in a circuit.

What is impedance of a circuit?

Electrical impedance is the measure of the opposition that a circuit presents to a current when a voltage is applied. Impedance is a complex number, with the same units as resistance, for which the SI unit is the ohm (Ω).

How do you reduce output impedance?

using a low input offset rail to rail op amp to act as a buffer to lower the output impedance. ;-) At the most basic level an amplifier is more of something out than that something goes in, but depending on semantics, you can get the opposite if so desired.

What is output impedance transistor?

The output impedance is simple the parallel combination of the Emitter (Source) resistor R_L and the small signal emitter (source) resistance of the transistor r_E. Again from section 9.3. 3, the equation for r_E is as follows: Similarly, the small signal source resistance, r_S, for a MOS FET is 1/ g _m .
