The Tangent-Chord theorem is sometimes stated as “The angle formed by a tangent to a circle and a chord is equal to half the angle measure of the intercepted arc.” This is equivalent to what we have shown, since the angle measure of an intercepted arc is twice the angle measure of the inscribed angle that subtends it.

Considering this, what is a tangent in geometry?

In geometry, the tangent line (or simply tangent) to a plane curve at a given point is the straight line that "just touches" the curve at that point. Leibniz defined it as the line through a pair of infinitely close points on the curve. The word "tangent" comes from the Latin tangere, "to touch".

Similarly, what is a chord secant and tangent? A line will meet a circle at no more than two points. We call a line a secant if it intersects twice, and a tangent if it intersects once (just touching at a single point). Chords are segments connecting two points on a circle, so chords become secants when extended.

In this regard, what is the difference between a tangent and a chord?

Chords: A chord of a circle is a segment that you draw from one point on the circle to another point on the circle. A chord always stays inside the circle. Tangent: A tangent to a circle is a line, ray, or segment that touches the outside of the circle in exactly one point. It never crosses into the circle.

What is the equation for tangent?

Recall : • A Tangent Line is a line which locally touches a curve at one and only one point. The slope-intercept formula for a line is y = mx + b, where m is the slope of the line and b is the y-intercept.

Related Question Answers

Does a straight line have a tangent?

Tangent, in geometry, straight line (or smooth curve) that touches a given curve at one point; at that point the slope of the curve is equal to that of the tangent. A tangent line may be considered the limiting position of a secant line as the two points at which it crosses the curve approach one another.

What is slope of tangent?

Therefore, the slope of the tangent is the limit of Δy/Δx as Δx approaches zero, or dy/dx. We call this limit the derivative. Its value at a point on the function gives us the slope of the tangent at that point. For example, let y=x².

What is the symbol for tangent?

Finally, the ratio of the opposite side to the adjacent side is called the tangent and given the symbol tan. The ratio of the opposite to the hypotenuse is . 967 and defined to be the sine of the angle c = 75.5 degrees.

What does a tangent to a circle mean?

In Euclidean plane geometry, a tangent line to a circle is a line that touches the circle at exactly one point, never entering the circle's interior. Tangent lines to circles form the subject of several theorems, and play an important role in many geometrical constructions and proofs.

What is the tangent of?

The tangent of an angle is the trigonometric ratio between the adjacent side and the opposite side of a right triangle containing that angle. Example: In the triangle shown, tan(A)=68 or 34 and tan(B)=86 or 43 .

What does Sine mean?

In mathematics, the sine is a trigonometric function of an angle. The sine of an acute angle is defined in the context of a right triangle: for the specified angle, it is the ratio of the length of the side that is opposite that angle, to the length of the longest side of the triangle (the hypotenuse).

What number is tangent?

See also Tangent number. The first few values are 1, 2, 16, 272, 7936, 353792, 22368256, 1903757312 (sequence A000182 in OEIS). They are called tangent numbers because they appear as numerators in the Maclaurin series of tan(x) .

Can any chord be a diameter?

A chord of a circle is a straight line segment whose endpoints both lie on the circle. A chord that passes through a circle's center point is the circle's diameter. Every diameter is a chord, but not every chord is a diameter.

Are chords Secants?

A chord of a circle is a straight line segment whose endpoints both lie on the circle. The infinite line extension of a chord is a secant line, or just secant. More generally, a chord is a line segment joining two points on any curve, for instance, an ellipse.

Is a radius a chord?

Any segment which connects two different points on a circle is a chord. The radius of a circle connects the centre and one point on the circle. Hence a radius cannot be called a chord.

What is a minor arc?

A minor arc (left figure) is an arc of a circle having measure less than or equal to ( radians).

What is the difference between a secant and a tangent?

A tangent line touches the curve at one point and has the same slope as the curve does at that point. A secant line intersects at 2 or more points and has a slope equal to the average rate of change between those points.

What is a chord in math?

In plane geometry, a chord is the line segment joining two points on a curve. The term is often used to describe a line segment whose ends lie on a circle.

How are chords and Secants alike?

A chord is a segment whose endpoints are on a circle. A secant is a line that intersects a circle in two points. A tangent is a line in the plane of a circle that intersects the circle in exactly one point, the point of tangency.

What is a major arc?

A major arc (right figure) is an arc of a circle having measure greater than or equal to ( radians). SEE ALSO: Arc, Minor Arc, Semicircle.

How many tangents can a circle have?

And, tangent is the line which intersects a circle at one point only. on these points which touches at only one point. Hence, a circle can have infinite tangents.

How do you solve an inscribed angle?

By the inscribed angle theorem, the measure of an inscribed angle is half the measure of the intercepted arc. The measure of the central angle ∠POR of the intercepted arc ?PR is 90°. Therefore, m∠PQR=12m∠POR =12(90°) =45°.

How do you find the chord angle?

If two chords intersect inside a circle, then the measure of the angle formed is one half the sum of the measure of the arcs intercepted by the angle and its vertical angle . In the figure, m∠1=12(m?QR+m?PS) .

How do you find the angle of an arc?

An arc measure is an angle the arc makes at the center of a circle, whereas the arc length is the span along the arc. This angle measure can be in radians or degrees, and we can easily convert between each with the formula π radians = 180° π r a d i a n s = 180 ° .

How do you find the central angle?

(arc length) ÷ circumference = (central angle) ÷ 360°

The central angle will be in degrees. This formula makes sense, if you think about it. The length of the arc out of the total length around the circle (circumference) is the same proportion as the arc's angle out of the total angle in a circle (360 degrees).

How do you find the angle of intersecting chords?

If two chords intersect inside a circle, then the measure of the angle formed is one half the sum of the measure of the arcs intercepted by the angle and its vertical angle. In the circle, the two chords ¯PR and ¯QS intersect inside the circle. Since vertical angles are congruent, m∠1=m∠3 and m∠2=m∠4.

How do you find the tangent angle of a circle?

Tangent and Secant. The measure of an angle formed by a secant and a tangent drawn from a point outside the circle is 12 the difference of the intercepted arcs . Remember that this theorem only used the intercepted arcs . Therefore, the red arc in the picture below is not used in this formula.

How do you find the length of a chord?

The formula for the chord length is: 2rsin(theta/2) where r is the radius of the circle and theta is the angle from the centre of the circle to the two points of the chord.

What is the central angle of a circle?

A central angle is an angle with endpoints and located on a circle's circumference and vertex located at the circle's center (Rhoad et al. 1984, p. 420). A central angle in a circle determines an arc .

Does a tangent intersect a circle?

A line that intersects a circle in exactly one point is called a tangent and the point where the intersection occurs is called the point of tangency. The tangent is always perpendicular to the radius drawn to the point of tangency. A secant is a line that intersects a circle in exactly two points.

What is the tangent chord angle theorem?

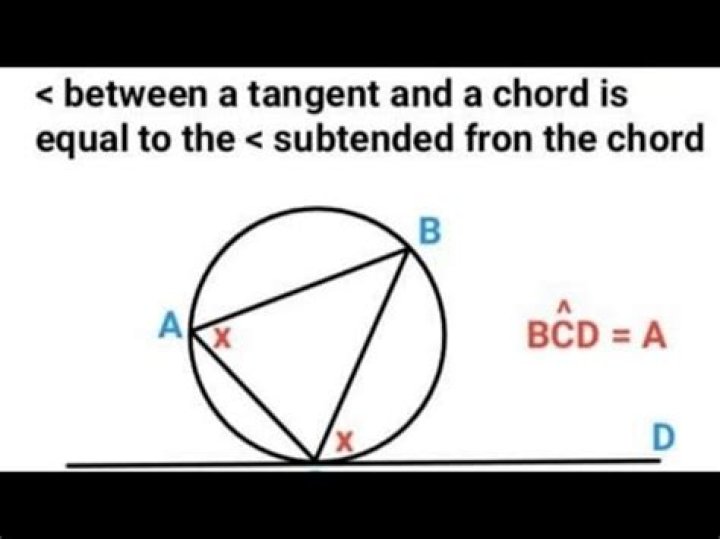

The alternate segment theorem (also known as the tangent-chord theorem) states that in any circle, the angle between a chord and a tangent through one of the end points of the chord is equal to the angle in the alternate segment.

How do you find Secants?

The secant of an angle in a right triangle is the value found by dividing length of the hypotenuse by the length of the side adjacent the given angle. The secant ratio is the reciprocal of the cosine ratio.

What is a chord circle theorem?

The intersecting chords theorem or just The chord theorem is a statement in elementary geometry that describes a relation of the four line segments created by two intersecting chords within a circle. It states that the products of the lengths of the line segments on each chord are equal.
