Iperf has client and server functionality, and can create data streams to measure the throughput between the two ends in one or both directions. TCP: When used for testing TCP capacity, iperf measures the throughput of the payload. Iperf uses 1024 × 1024 for mebibytes and 1000 × 1000 for megabytes.

Similarly, it is asked, how does Iperf calculate throughput?

To do that, you simply add one of two options to the iPerf client command line. The " -r " option on the client's command line instructs iPerf to measure bi-directional throughput sequentially, i.e., upstream followed by downstream. The " -d " option instructs iPerf to run both upstream and downstream at the same time.

Similarly, what is Iperf command? Iperf is a tool to measure the bandwidth and the quality of a network link. - Latency (response time or RTT): can be measured with the Ping command. - Jitter (latency variation): can be measured with an Iperf UDP test.

Beside above, how does Iperf measure UDP throughput?

Using iPerf, you can also test the maximum throughput achieved via UDP connections.

1. Start a UDP iPerf server: iperf -s -u.
2. Connect your client to your iPerf UDP server.
3. You can change this with the -b flag, replacing the number after with the maximum bandwidth rate you wish to test against.

How can I test the bandwidth between two computers?

Testing the speed between two computers on a local network can be done by copying a large file from one computer to the second. The speed will vary depending on the performance of the computer's and medium used to transmit data. For example, an Ethernet cable may be faster than a wireless transfer.

Related Question Answers

What does Iperf stand for?

IPERF

Acronym	Definition
IPERF	Internet Performance Working Group

How accurate is Iperf?

Iperf. In most cases the results reported by Iperf are close to the real available bandwidth, however the results of the test can't always be taken at face value: TCP throughput is not available bandwidth: Iperf returns the rate at which data is reliably transferred from C to S over a single TCP connection (by default)

What is the use of Iperf?

Iperf. iperf is a widely used tool for network performance measurement and tuning. It is significant as a cross-platform tool that can produce standardized performance measurements for any network.

What is throughput in telecommunication?

Throughput refers to the number of information units a system can process within a specified amount of time. In the context of communication networks like the internet, throughput is the rate at which messages are delivered successfully.

How do I start Iperf?

UDP Clients & Servers

1. Start a UDP iPerf server: iperf -s -u.
2. Connect your client to your iPerf UDP server. Replace 198.51.100.5 with your IP address:
3. You can change this with the -b flag, replacing the number after with the maximum bandwidth rate you wish to test against.

What is good throughput?

Throughput: This is the number of requests that are successfully executed/serviced per unit of time. For example, if the throughput is 50/minute, this means that on your server, per minute, 50 requests are executed successfully (accepted, processed and responded properly). In case of throughput; the higher the better.

What is throughput speed?

In data transmission, network throughput is the amount of data moved successfully from one place to another in a given time period, and typically measured in bits per second (bps), as in megabits per second (Mbps) or gigabits per second (Gbps). Throughput applies at higher levels of the IT infrastructure as well.

How can I check WIFI throughput?

Test speed of devices with the Google Wifi app

1. Open the Google Wifi app .
2. Tap the Settings and actions tab.
3. Tap Test Wi-Fi.
4. We'll test one point at a time, showing speeds for each device connected to that point.
5. You'll see the speed results for each device.
6. Once all tests have completed, tap Redo to run the tests again.

What is the difference between throughput and bandwidth?

Bandwidth is the maximum amount of data that can travel through a 'channel'. Throughput is how much data actually does travel through the 'channel' successfully. This can be limited by a ton of different things including latency, and what protocol you are using.

How is server throughput calculated?

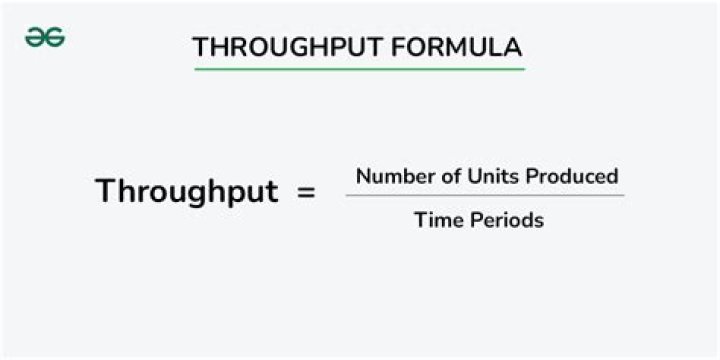

Throughput measures the amount of messages that a server processes during a specific time interval (e.g. per second). Throughput is calculated by measuring the time taken to processes a set of messages and then using the following equation.

How is router throughput calculated?

To measure throughput, download and install a program called QCheck, by Ixia. It's a free download, but you'll have to register to get the download link e-mailed to you. Install QCheck on two computers--one that's plugged into your router via Ethernet and one on a wireless computer.

Can Iperf measure latency?

iperf can be used to collect latency and bandwidth statistics for both TCP and UDP. Among stats it can collect – throughput, jitter, and packet loss. This is basically a tool to measure overall link quality. It does not measure application performance.

Is Iperf a TCP or UDP?

Iperf supports two types of transport protocols: TCP and UDP. The major differences between the TCP and the UDP test are bandwidth and results returned. In TCP mode the sender generates as much data as supported by the network, while in UDP mode the user has to define the rate of transmission.

What is TCP and UDP?

They are TCP or Transmission Control Protocol and UDP or User Datagram Protocol. TCP is connection oriented – once a connection is established, data can be sent bidirectional. UDP is a simpler, connectionless Internet protocol. Multiple messages are sent as packets in chunks using UDP.

What is UDP traffic?

UDP (User Datagram Protocol) is an alternative communications protocol to Transmission Control Protocol (TCP) used primarily for establishing low-latency and loss-tolerating connections between applications on the internet.

How do I run Iperf on Windows?

You can download iperf for windows from Iperf For windows. Now unzip this zip file to a folder named "iperf" and run the iperf.exe inside that directory. For example i have extracted, the iperf zip in C:iperf directory, so will open the Windows CMD, and navigate to that directory, to run the iperf.exe command.

What is bandwidth in networking?

Bandwidth. Bandwidth describes the maximum data transfer rate of a network or Internet connection. It measures how much data can be sent over a specific connection in a given amount of time. For example, a gigabit Ethernet connection has a bandwidth of 1,000 Mbps (125 megabytes per second).

How do I check bandwidth?

How To Find Out What My Bandwidth Is?

1. Calculate the speed of your Internet with Speedtest.net. Access the main home page, select a location and click "Begin Test" (see Resource section).
2. Check your speed with Speakeasy.net.
3. Test the speed of your Internet connection with my-speedtest.com.
4. Write down the upload and download speeds that the sites give you.

Does Iperf use TCP or UDP?

Iperf uses the different capacities of TCP and UDP to provide statistics about network links. Finally, Iperf can be installed very easily on any UNIX/Linux or Microsoft Windows system. One host must be set as client, the other one as server.

How do you test a network?

Here are a few simple tests you can conduct to make sure your network is functional.

1. Check the physical connections.
2. Verify that you can log on.
3. Check the network configuration.
4. This command will spit out numerous lines of information.
5. Verify that the computers can ping each other.

What port does Iperf use?

port 5001

How do I kill Iperf?

To kill the iperf server just press CTRL+C in your terminal and it will interrupt the process.

What is Iperf and how do you use it?

IPerf is the Windows-based testing tool developed by the U.S. National Laboratory for Applied Networking Research (NLANR) Distributed Application Support Team (DAST). The tool is built on a client/server model and can be used to measure maximum UDP and TCP throughput between the client and server stations.

What is CWND in Iperf?

Congestion Window (cwnd) is a TCP state variable that limits the amount of data the TCP can send into the network before receiving an ACK. The Receiver Window (rwnd) is a variable that advertises the amount of data that the destination side can receive.

How do I test my internet speed in Linux?

With that said, here are the installation steps:

1. Open a terminal window.
2. Give the newly downloaded file the necessary permissions with the command chmod u+x speedtest.py.
3. Move the file with the command sudo mv speedtest.py /usr/local/bin.
