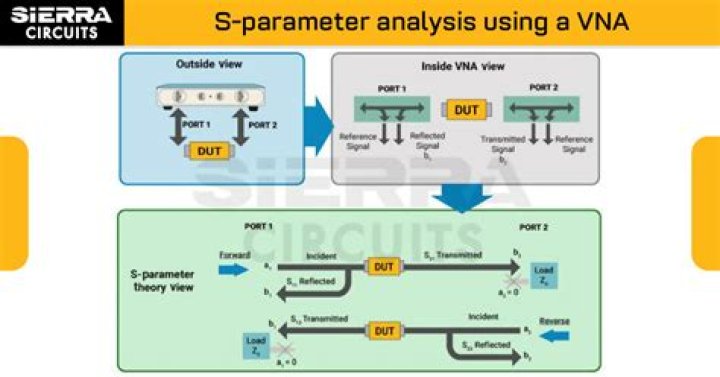

S-parameters are typically measured using a Vector Network Analyzer (VNA). The VNA measures Sparameters over frequency by sweeping the frequency of the input, it has the ability to separate transmitted and reflected power using directional couplers for power measurements.

Also question is, what is S11 in VNA?

S11 represents how much power is reflected from the antenna, and hence is known as the reflection coefficient (sometimes written as gamma: or return loss. The remainder of the power was "accepted by" or deliverd to the antenna. This accepted power is either radiated or absorbed as losses within the antenna.

Secondly, how is S11 calculated? S11 = b1/a1 for a2= 0 or Zl=Zo. This is an input reflection coefficient. S11 is equal to the ratio of a reflected wave and an incident wave with Zl=Zo.

Furthermore, how do you measure VNA?

The VNA measurement frequency bandwidth and the number of frequency points across the selected frequency range are input options for a given VNA measurement. The VNA measures the high-speed signal vector response to a component or a network, one frequency at a time, by applying a continuous wave at that frequency.

What is S11 S12 S21 S22?

S11 is the input port voltage reflection coefficient. S12 is the reverse voltage gain. S21 is the forward voltage gain. S22 is the output port voltage reflection coefficient.

Related Question Answers

What is a good value for S11?

A good compromise is -13 dB. This is the origin of the rule of thumb, that the maximum acceptable value of S11 for an interconnect structure is about -13 dB: If S11 is smaller than -13 dB, we will not see the impact from these reflections on the transmitted signal.

What is S11 parameter in antenna?

The most commonly quoted and usable parameter in regards to antennas is S11. S11 (return loss) represents how much power is reflected from the antenna, and hence is known as the reflection coefficient (sometimes written as gamma: or return loss.

Is high return loss Good?

Return loss is a measure of how well devices or lines are matched. A match is good if the return loss is high. A high return loss is desirable and results in a lower insertion loss. From a certain perspective 'Return Loss' is a misnomer.

Is Return Loss same as S11?

It is when we call S11 the return loss that we introduce confusion. Return loss is in dB and is always positive. S11, in dB, is always negative. While the two terms are related as S11[dB] = -RL, they are not the same, and their behaviors are opposite.

Is S11 reflection coefficient?

S11 is defined as the reflection coefficient between the port impedance and the network's input impedance (looking from the source end to the load end).

How do you calculate insertion loss?

Calculating Transmission Line Insertion Loss

1. Calculate the estimated worst loss of each component in the transmission line system.
2. Add all the component's estimated worst losses together to calculate total insertion loss in the transmission line system.

What is S11 and S21 parameters?

S11 is equivalent to the input complex reflection coefficient or impedance of the DUT, and S21 is the forward complex transmission coefficient. S22 is equivalent to the output complex reflection coefficient or output impedance of the DUT, and S12 is the reverse complex transmission coefficient.

How do you calculate reflection coefficient?

The reflection coefficient is equal to the ratio of the amplitude of the reflected wave to the incident wave.

Can S11 be positive?

Yes, it can. For example, if you are measuring S11 for an antenna without an anechoic chamber, the antenna could be receiving some signal from the enviroment that could be interpreted as a reflection coefficient larger than 1.

Can VNA measure impedance?

VNA's measure s-parameters and impedance analyzers measure impedance. But S-parameters can be converted to impedance, so what's the difference? A major difference between VNA's and Impedance analyzers is that the VNA uses a reference impedance, normally 50 Ohms, that can be easily matched to a transmission line.

Can a VNA measure inductance?

We want to find the error dispersion (variance) on the impedance, Z, for each of these cases. The Copper Mountain Technologies S5065 VNA can measure from 9 kHz to 6.5 GHz, making it ideal for evaluating power plane impedances and measuring inductors and capacitors that might be used in RF designs (Fig. 2).

How does a network analyzer measure cable loss?

Steps

1. Turn on Spec An and attach adapters to the tracking generator (TG) output and RF Input.
2. Connect the reference cable to the TG out and RF In.
3. Adjust Span of scan for frequency range of interest.
4. Adjust TG output amplitude and spectrum analyzer display to view the entire trace.
5. Enable TG.

What is ENA network analyzer?

Keysight Technologies Inc.

announced the E5080A ENA vector network analyzer (VNA), which offers the industry's best combination of RF measurement performance and speed, enabling a tenfold improvement in test time. The ENA also offers a large color touchscreen display with fast access to basic measurements.

Why do we need to calibrate VNA?

For an RF vector network analyzer, calibration is particularly important. This user or systematic calibration is needed to ensure that the effects of cables, connectors, etc are nulled out before the measurements of the device under test are made using the vector network analyzer, VNA.

How do you measure antenna impedance?

If you obtain total nulling, with no residual signal present (ie, flatline), then the antenna impedance is non-reactive - purely resistive - at that frequency. Measure the resistance of the potentiometer to obtain the impedance. R is the measured resistance of the potentiometer in ohms.

Can you calculate S21 from S11?

At least you need two parameters S11 and S21, if you have got symmetrical reciprocal network, where S11 = S22, S12 = S21.

Is S11 input impedance?

Input Impedance Formula for a Transmission Line

The formula for S11 treats the transmission line as a circuit network with its own input impedance, which is required when considering wave propagation into an electrically long circuit network like a transmission line.

How do you achieve impedance matching?

Impedance matching to minimize reflections is achieved by making the load impedance equal to the source impedance. If the source impedance, load impedance and transmission line characteristic impedance are purely resistive, then reflection-less matching is the same as maximum power transfer matching.

Is Return Loss same as reflection loss?

Return loss quantifies the effectiveness of delivering power from a source or transmission line to a load. Also, reflection loss (the ratio of reflected power to the incident power in dB) is the same as RL.

How do you find the impedance of a reflection coefficient?

z = gamma2z( gamma ) converts the reflection coefficient gamma to the impedance z using a reference impedance Z₀ of 50 ohms. z = gamma2z( gamma , z0 ) converts the reflection coefficient gamma to the impedance z by: Computing the normalized impedance. Multiplying the normalized impedance by the reference impedance Z₀.

Why S parameters are used in microwave?

S-parameters measure traveling waves rather than total voltages and currents. S-parameters are analytically convenient; they allow for calculations of system performance by cascading the individual components. Flow-graph analysis can be used, which simplifies the analysis of a microwave system.

How do you find the input impedance?

The generalised formula for the input impedance of any circuit is Z_IN = V_IN/I_IN. The DC bias circuit sets the DC operating “Q†point of the transistor and as the input capacitor, C1 acts as an open circuit and blocks any DC voltage, at DC (0Hz) the input impedance (Z_IN) of the circuit will be extremely high.
