How do you calculate the depth of a shallow foundation?
Written by Ava Hudson — 0 Views
As per Rankine's theory Minimum depth of foundation =p/w (1-sin Φ /1+sin Φ) 2 where p=gross bearing capacity w =density of soil Φ =angle of response of soil 3. But in practice, the foundation depth is kept at 0.90m or even more.
Keeping this in view, what is the depth of shallow foundation?
Shallow foundations are constructed where soil layer at shallow depth (upto 1.5m) is able to support the structural loads. The depth of shallow foundations are generally less than its width.
Beside above, how do I know if my foundation is shallow or deep? The Depth of the Shallow foundation is normally less than 3 meter or the depth of the foundation is less than a width of the footing. Depth of the Deep foundation is more than Shallow Foundation or more than the width of the footing.
Simply so, how would you fix the depth of foundation write Rankine's formula for the minimum depth?
Depth of foundation formula:- as per Rankine's theory & formula minimum depth of foundation is represented by formula = p/w (1-sin Φ /1+sin Φ) 2, where p=gross bearing capacity, w =density of soil, Φ =angle of response of soil. But in practice, the foundation depth is kept at 0.90m or even more.
What is the minimum depth of footing?
12 inches
Related Question Answers
What are the 3 types of foundations?
But chances are your house has (or will have) one of these three foundations: full basement, crawlspace, or slab-on-grade. Other variations are possible. Here are the three main types of house foundations that you will encounter in residential construction.How do I know my foundation depth?
General factors to be considered for determining depth of foundation are:- Load applied from structure to the foundation.
- Bearing capacity of soil.
- Depth of water level below the ground surface.
- Types of soil and depth of layers in case of layered soil.
- Depth of adjacent foundation.
What is the size of a standard footing?
Depth: Footings should extend to a minimum depth of 12 inches below previously undisturbed soil. Footings also must extend at least 12 inches below the frost line (the depth to which the ground freezes in winter) or must be frost-protected. Width: Footings should have a minimum width of 12 inches.How wide do foundations need to be?
For a single storey building strip foundations will typically be 450mm wide and at least 200mm deep, and for two storeys 600mm wide and 200mm deep.How deep is the foundation of a 3 story building?
Foundation walls for two (2) story buildings under 25' 0" in height shall be a minimum of ten inches (10") in thickness, measured horizontally, through a cross-section of the foundation. Foundation walls for three (3) story buildings over 25' 0" in height shall be a minimum of twelve inches (12") in thickness.Why do we use shallow foundation?
Why we use shallow foundation? - To distribute the structural loads over a wide horizontal area at a shallow depth below the ground level. Spread footings Spread footings are structural members used to support columns and walls and to transmit and distribute their loads to the soil.What are shallow foundations used for?
A shallow foundation is a type of building foundation that transfers building loads to the earth very near to the surface, rather than to a subsurface layer or a range of depths as does a deep foundation.What are the different shallow foundations?

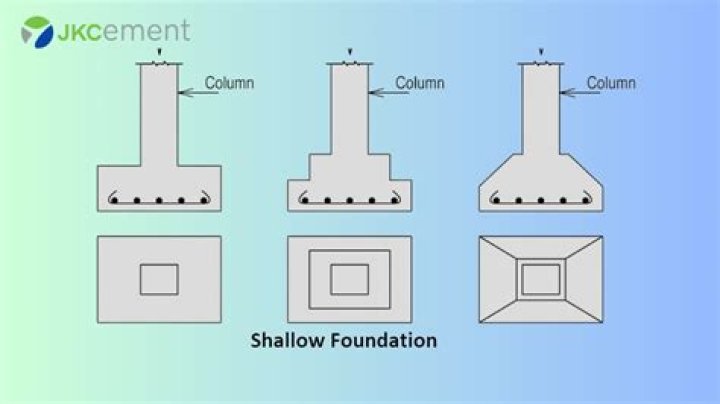

The different types of shallow foundations are:- Spread or Isolated Footing;
- Strip Foundation;
- Mat or Raft Foundation;
- Combined Foundation.
Is code a foundation design?
1 The various types of shallow foundations are as under: a) Spread ofpad - pee IS : 1080-1986:. b) Strip - See IS : 1080-1986$. c) Raft foundation - See IS : 2950 ( Part 1 )-19815. d) Ring and shell foundation --see IS : 11089-19841~ and IS : 94.56- 19807.How deep are trench fill foundations?
Trench fill foundations are a type of shallow foundation that avoids bricklaying below ground by instead almost completely filling the trench excavation with concrete. Typically, concrete is poured to within 150 mm of the surface ground level.Is code for design of shallow foundation?
As per IS 6403:1981 (Determination of bearing capacity of shallow foundations), shallow foundations are those whose width is greater than depth.How deep should concrete footings be for a deck?
Footings typically must extend below the frost line to prevent shifting during freeze-thaw cycles. Dig footing holes about 6 inches deeper than required. Fill the bottom of the hole with 6 inches of gravel and compact the gravel with a 2x4 or wood post.Which of the following type of foundation is suitable for sloping ground?
Where the natural surface of the ground is sloped, the most economical solution may be a stepped foundation. In this case, the foundation takes the form of a series of concrete horizontal steps following the slope of the ground.How do you make a footing?
5(b).- Step 1: Transfer of axial force at the base of column.
- Step 2: Size of the footing.
- Step 3: Thickness of footing.
- Step 4: Minimum reinforcement.
- Step 5: Check for the gross base pressure.
- Step 1: Size of the footing.
- Step 2: Thickness of footing slab based on one-way shear.
- Step 3: Checking for two-way shear.
How deep is a concrete foundation?
Wall Footing Thickness.For masonry or concrete construction, the minimum foundation wall will be 6 inches. The minimum reinforced concrete footing thickness will be 6 inches or 1-1/2 times the length of the footing projection from the foundation wall, whichever is greater.
