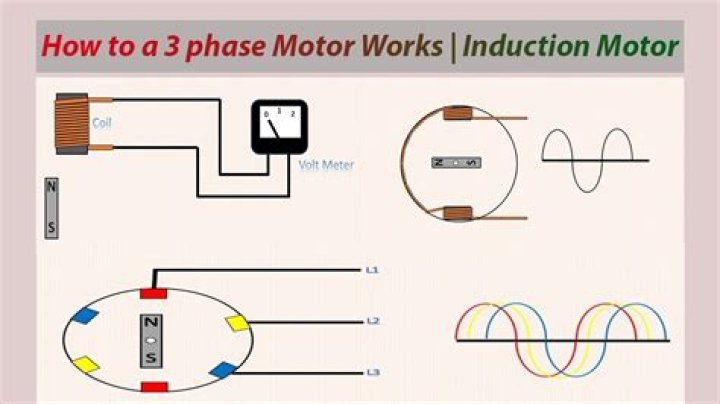

Motor operation is based on the attraction or repulsion between magnetic poles. Using the three-phase motor shown in Figure 7, the process starts when current flows through one of the three stator windings and generates a magnetic pole that attracts the closest permanent magnet of the opposite pole.

Likewise, people ask, can a DC motor be 3 phase?

A DC brushless motor can indeed be 3-phase. In fact, 3-phase is the most common. This refers to the number of electrical phase windings on the motor. It is switched via a 3-phase power "bridge" from a DC voltage supply.

Beside above, how many phases does a DC motor have? The DC motor is neither single phase nor three phase. The DC motor only requires DC supply for its operation. Yes, the controlled power converter that converts AC voltage into DC can be of a single phase or three phase type.

Hereof, do DC motors have phases?

All DC motors are single phase, but AC motors can be single phase or three phase. AC and DC motors use the same principle of using an armature winding and magnetic field except with DC motors, the armature rotates while the magnetic field doesn't rotate.

Are brushless motors AC or DC?

They are originally called PMAC motors permanent magnet AC motors. In BLDC motor, stator and rotor fluxes maintain constant angle between them similar to dc motor. Brushless DC Motor / BLDC is actually DC powered. But an inverter is connected which converts it to AC.

Related Question Answers

Is brushless DC a 3 phase motor?

Because the rotating magnetic field generated by the stator causes the rotor to revolve at the same frequency, a BLDC motor is known as a “synchronous” type. BLDC motors can come in one-, two-, or three-phase.

Are all brushless motors 3 phase?

No, the motors we use are not 3 phase motors. Yes, they have 3 phases wound on them (mostly), but only two phases are used at a time for propulsion leaving the third for phase sensing. 3 phase motors use all three phases at the same time for propulsion.

What's a 3 phase motor?

Three-phase motors are motors designed to run on the three-phase alternating current (AC) power used in many industrial applications. AC electricity changes direction from negative to positive and back many times a second. That means that no two AC waves are ever at the same point at the same time.

How does a brushless DC fan work?

In a brushed DC motor, the rotor spins 180-degrees when an electric current is run to the armature. In brushless DC motors, the permanent magnets are on the rotor, and the electromagnets are on the stator. A computer then charges the electromagnets in the stator to rotate the rotor a full 360-degrees.

What is back EMF in motor?

Back emf in electric motors A motor has coils turning inside magnetic fields, and a coil turning inside a magnetic field induces an emf. This emf, known as the back emf, acts against the applied voltage that's causing the motor to spin in the first place, and reduces the current flowing through the coils of the motor.

Can you run a AC motor on DC?

Universal motor can work on both AC and DC. They are like DC series motor with slight modification and often referred to as an AC series motors.

Which is better AC or DC motor?

AC motors are generally considered to be more powerful than DC motors because they can generate higher torque by using a more powerful current. However, DC motors are typically more efficient and make better use of their input energy.

Is there a 3 phase DC motor?

DC motors, and all DC appliances and devices are not available in “3phaseDC.” 3 phase is exclusively an improved AC power system and cannot be applied to DC systems.

Are Tesla Motors AC or DC?

IMHO, AC Propulsion (Tesla Motors) uses AC because a mechanically commutated DC motor that meets the high "turn down" ratio of a vehicle application is more complex than an electronically commutated AC motor.

Why is AC motor preferred over DC?

Answer: Ac is more preferred than dc because it is easy to maintain and change the voltage of ac for transmission and distribution purpose. Plant cost of ac transmission is much lower compared to dc transimission. When fault occurs it is easy to interrupt ac supply.

What are the 3 types of DC motors?

The types of DC motor include:

• Permanent Magnet DC Motor (PMDC Motor)
• Separately Excited DC Motor.
• Self Excited DC Motor.
• Shunt Wound DC Motor.
• Series Wound DC Motor.
• Compound Wound DC Motor.
• Short shunt DC Motor.
• Long shunt DC Motor.

Why are DC motors more expensive than AC?

The rotor design is probably the most important factor in making the DC motor more expensive. If the DC motor stator has permanent magnets, that could make it more expensive or not depending on the magnet material. There are many more manufacturers making AC motors and many more AC motors used at 1000 kW.

Are induction motors AC or DC?

A.C. motors are powered from alternating current (A.C.) while D.C. motors are powered from direct current (D.C.), such as batteries, D.C. power supplies or an AC-to-DC power converter. A.C. induction motors do not use brushes; they are very rugged and have long life expectancies.

Are all DC motors single phase?

All DC motors are single phase, but AC motors can be single phase or three phase. AC and DC motors use the same principle of using an armature winding and magnetic field except with DC motors, the armature rotates while the magnetic field doesn't rotate.

Can a 3 phase motor run on 1 phase?

Running a three phase motor on single phase power is simple. Essentially all you need to do is wire the single phase power to the input side of your variable frequency drive and then wire the three phase power of your motor to the output section of the drive. That's it!

How many volts can a DC motor generate?

Typical DC motors may operate on as few as 1.5 Volts or up to 100 Volts or more. Roboticists often use motors that operate on 6, 12, or 24 volts because most robots are battery powered, and batteries are typically available with these values.

What is 2 phase in electricity?

Two-phase electrical power was an early 20th-century polyphase alternating current electric power distribution system. Two circuits were used, with voltage phases differing by one-quarter of a cycle, 90°. Usually circuits used four wires, two for each phase.

Where is DC motor used?

Small DC motors are used in tools, toys, and appliances. The universal motor can operate on direct current but is a lightweight brushed motor used for portable power tools and appliances. Larger DC motors are currently used in propulsion of electric vehicles, elevator and hoists, and in drives for steel rolling mills.

What does DC stand for in electricity?

direct current

What are the 3 phases of electricity?

Three-Phase Loads An electrical system is comprised of three main parts: energy generation, energy transmission and energy consumers. The consumers are the loads connected to the electrical system. One of the advantages of a three-phase system is that it can supply both single-phase and three-phase loads.

Why is 440v 3 phase?

3 phase system is expressed with line voltages. The line votage is 440 volt. Also the voltage between any one phase and neutral for a 3 phase system is 240 volts. 440V in 3 phase system is line to line voltage if you calculate per phase voltage then you will get approximate same value as for 1 phase system.

How many wires are in a 3 phase?

four wires

Can you wire a 3 phase motor wrong?

If a 3-phase motor rotates in the wrong direction, you can swap any two leads to change to the desired direction. One way to test motor direction is to take your best guess on how to connect the leads, then run the motor and note the direction it spins. If you're wrong, you undo two leads and swap the wires.

What is the color code for 3 phase wiring?

Phase 3 - Phase 3 wiring should be blue. Neutral - Neutral wiring should be white. Ground - Ground wiring can be green or green with a yellow stripe.

Can a 3 phase motor be wired for 220?

You can run a 3 phase motor from standard 220 Single phase power. First, you get the 3 phase motor turning it (manually, or better, with a small 110 v motor), and THEN turn on the 220 (connected to two legs) it will run. It will not run at rated power, or smoothly, but it will run (at speed).

Does a 3 phase motor need a ground?

Three phase motors have only three "hot" power wires connected to the windings. There is no neutral connection. An earth/ground wire should be connected to the frame of the motor, but sometimes that is not done. It is probably more common for six or more wires to be available for connection options.

How do you wire a 3 phase motor to single phase?

Essentially all you need to do is wire the single phase power to the input side of your variable frequency drive and then wire the three phase power of your motor to the output section of the drive.

Can I connect neutral and ground together?

No, the neutral and ground should never be wired together. This is wrong, and potentially dangerous. When you plug in something in the outlet, the neutral will be live, as it closes the circuit. However, if there is something wrong and the neutral is disconnected, it will make the appliance dangerous.

How do you wire a low voltage 3 phase motor?

How to Wire a High & Low Voltage Three-Phase Motor

1. Wye Configuration, Low Voltage. Connect 1 and 7 to L1, 2 and 8 to L2, and 3 and 9 to L3.
2. Wye Configuration, High Voltage. Connect 1 to L1, 2 to L2, and 3 to L3.
3. Delta Configuration, Low Voltage. Connect 1, 6 and 7 to L1; 2, 4 and 8 to L2; and 3, 5 and 9 to L3.
4. Delta Configuration, High Voltage.

Does a 3 phase motor need a neutral?

A 3-phase motor by definition would never require a neutral conductor. Neutral connections are only needed on single phase circuits. "Why is a neutral not required?" Well, because in three phase, the phases conduct through one another and a dedicated load like a motor uses all three phases and ONLY all three phases.
